Cupples' J&J Company Inc. CNC and Conventional Machine Shop

Products

  • Spare Parts for Manufacturing Equipment
  • Prototypes
  • Machine Repairs
  • Tools, Dies, and Fixtures
  • Complete Special Machines
  • Contract Manufacturing
  • Complete Special Machine Fabrication

Machine Shop Capabilities

  • Vertical CNC machining with travels up to X=204.7"; Y=118.1"; Z=74.8"; up to 4 axis with and without pallet shuttles, 40 taper and 50 taper
  • Horizontal CNC machining with travels of 64.00" x 40.00" x 40.00" with full 4 axis 360,000-position rotary 4th axis. Renishaw probe technology for automatic measuring and part orientation. Machines have up to 32" square pallets and a 6-second pallet change. Spindle is 12,000 RPM Big Plus CAT 50
  • CNC Horizontal Boring Mills with X=137.80"; Y=98.43"; Z=62.99"; w=27.56"; 360,000-position full contouring rotary 4th axis
  • CNC slant bed turning up to 34.4" swing x 62.0" turning
  • Hybrid Swiss machining with up to 7 axes, including live tools
  • CNC turning up to 8 axes with sub-spindles and 1,000 PSI thru-tool coolant with up to 3.00" bar feed capacity, 2 turrets, and Y axis milling
  • VTL up to 51.2" swing diameter, 43.3" turning diameter, 36.4" turning height, 12-station turret 60/50HP with 40" diameter chuck
  • Wire EDM up to X=21.62"; Y=13.77"; Z=15.75" with 30 degrees at 15.75"
  • Conversational TRAK VMCs
  • Conversational TRAK turning center
  • 4" spindle conventional horizontal boring mill
  • Conventional turning up to 42" and up to 16' long
  • Conventional knee mills for maintenance machining
  • Centerless, surface, and Blanchard grinding
  • Vibratory stress relieving
  • Complete special machine fabrication

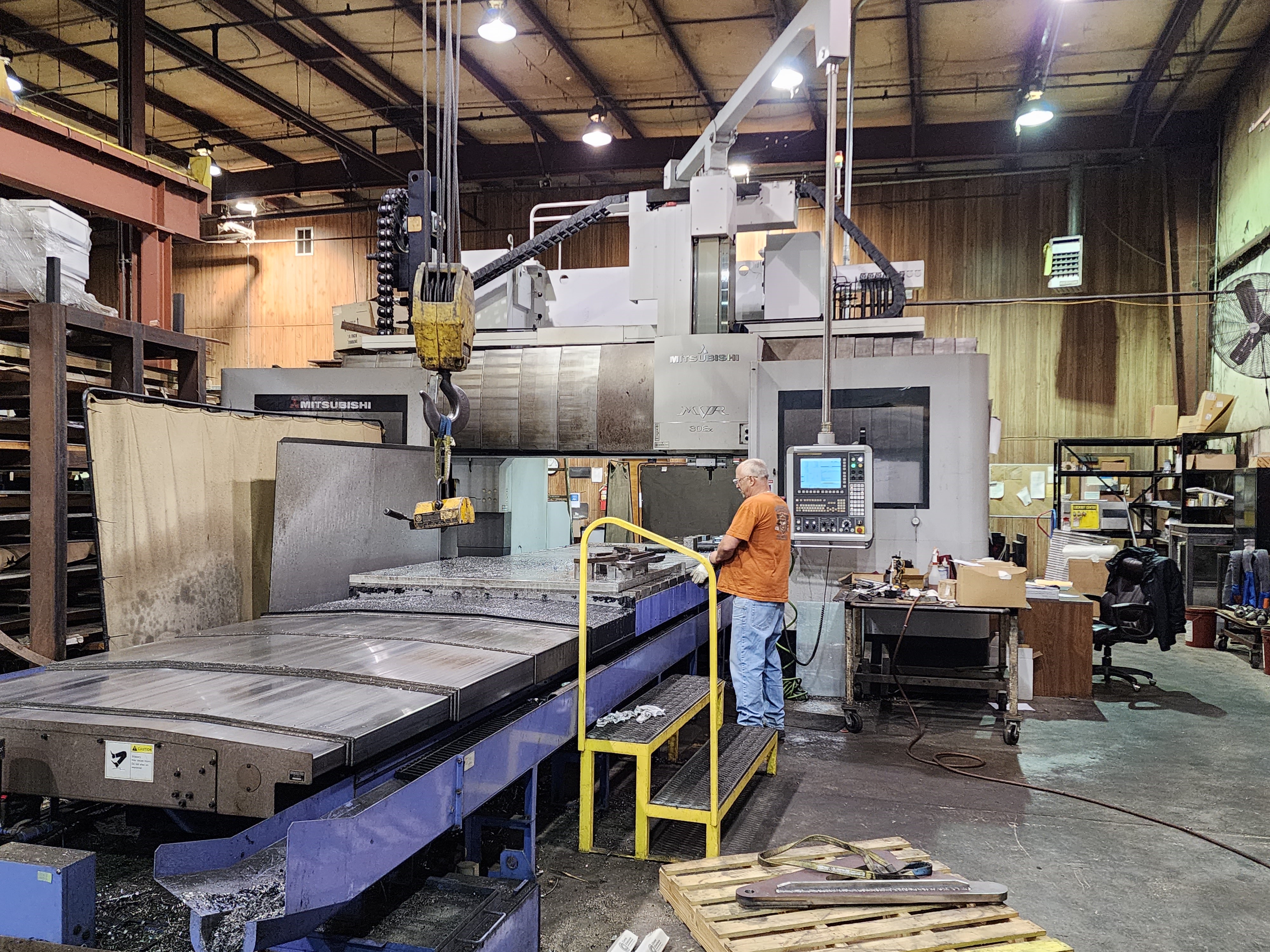

Cupples' J&J Company Inc.’s equipment for machining can be seen below:

Cupples' J&J Company Inc. offers conventional machining and CNC machine shop services.
